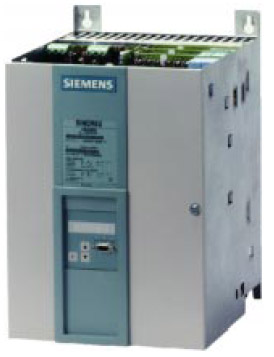

DC INVERTER SIMOREG DC Master 6RA70 Series
Function description
Using a binary signal, braking is initialized, requesting field reversal, and setting the main set point to the braking set point. According to section 9.18.1 the internal sequence for field reversal is initialized. The field is reversed, reducing the speed of the motor. Once the set point has been reached, a limit-value monitor resets the RS-flip flop initializing the sequence to establish the previous field state. The braking set point stays active, until a reset signal is applied to the “brake to defined speed” storing RS-flip flop.
Overview of SIEMENS DC Inverter
|
